Receiver Drier - 1.0L EcoBoost (92kW/125PS): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the retainers and the bezel.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the lower radiator splash shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors and detach the wiring harness.

Courtesy of FORD MOTOR COMPANY

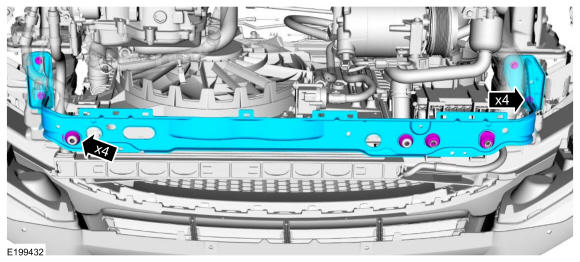

Remove the bolts and the lower cooling module bracket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

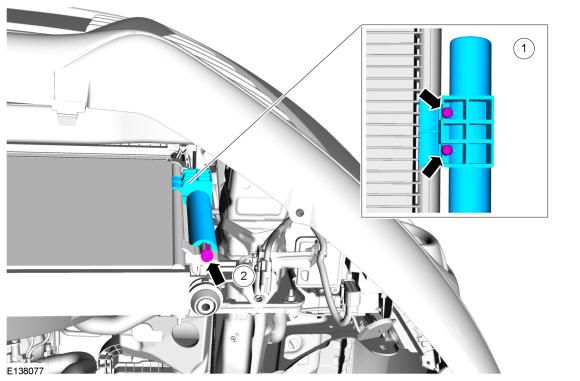

Remove the bolts and the receiver drier.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
