Passenger Side Register: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the weatherstrip aside and remove the RH side instrument panel finish panel.
    GFD269418Courtesy of FORD MOTOR COMPANY

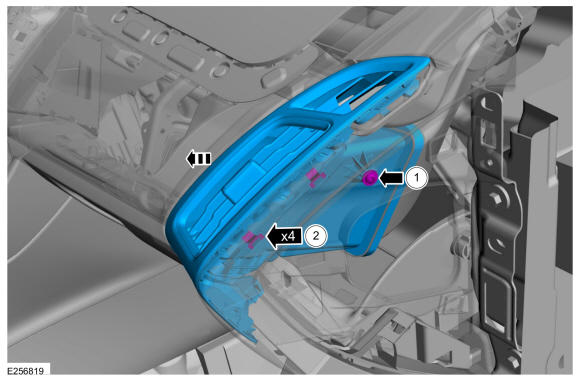

    1. Remove the retainer.
    2. Release the clips and remove the passenger side register.
GFD269480Courtesy of FORD MOTOR COMPANY
