Heating, Ventilation and Air Conditioning (HVAC) Control Module: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

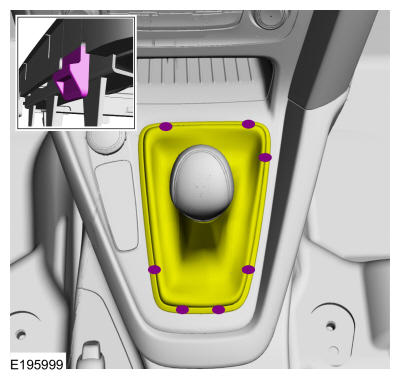

  1. Release the tabs and position the bezel aside.
    GFD269469Courtesy of FORD MOTOR COMPANY

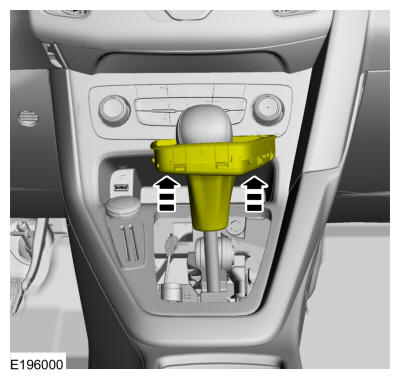

  2. Position the bezel upward.
    GFD269470Courtesy of FORD MOTOR COMPANY

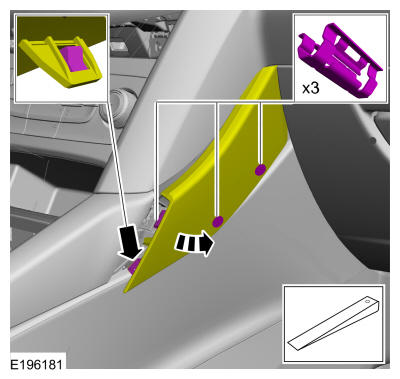

  3. Remove RH finish panel.
    GFD269471Courtesy of FORD MOTOR COMPANY

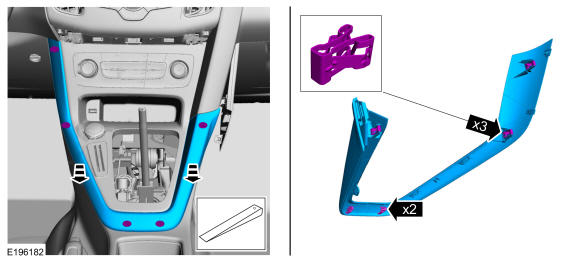

  4. Remove the finish panel.
    GFD269472Courtesy of FORD MOTOR COMPANY

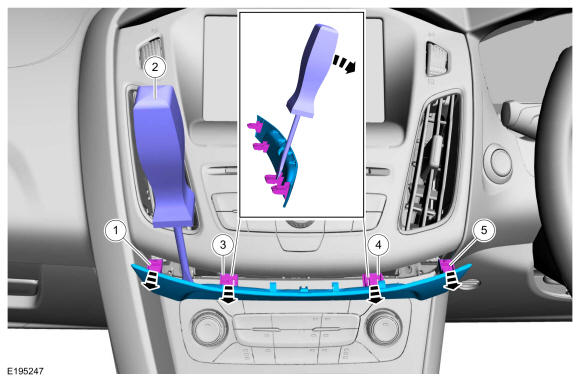

  5. Release the tabs and remove the bezel.
    GFD269473Courtesy of FORD MOTOR COMPANY

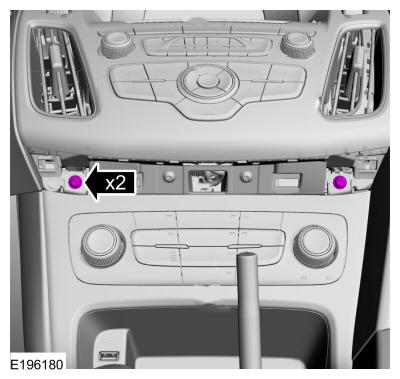

  6. Remove the retainers.
    GFD269474Courtesy of FORD MOTOR COMPANY

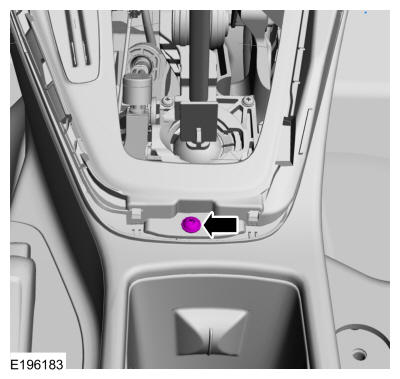

  7. Remove the retainer.
    GFD269475Courtesy of FORD MOTOR COMPANY

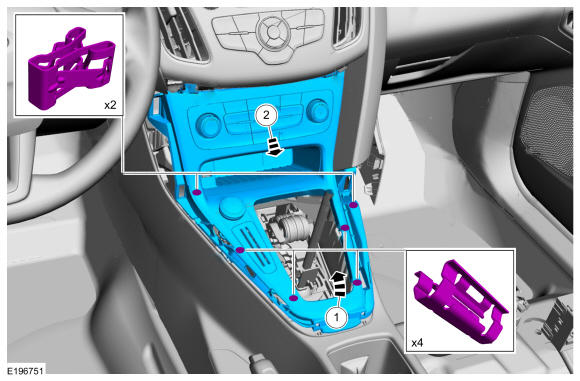

  8. Remove the console bezel.
    GFD269476Courtesy of FORD MOTOR COMPANY

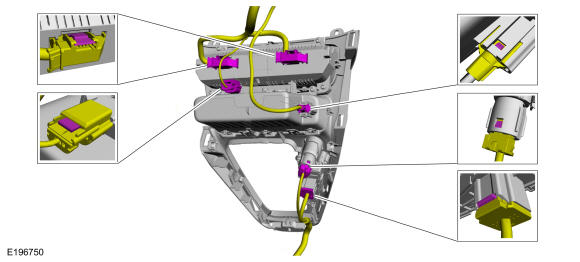

  9. Disconnect the electrical connector.
    GFD269477Courtesy of FORD MOTOR COMPANY

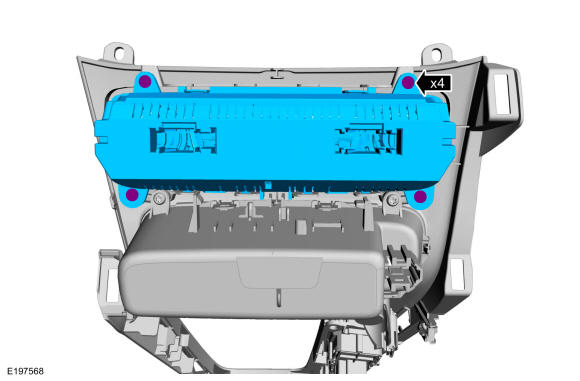

  10. Remove the retainers and HVAC module.
GFD269478Courtesy of FORD MOTOR COMPANY
