Footwell Air Discharge Temperature Sensor - Vehicles With: Dual Automatic Temperature Control (DATC): Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the FCIM. Refer to: FRONT CONTROLS INTERFACE MODULE (FCIM) .

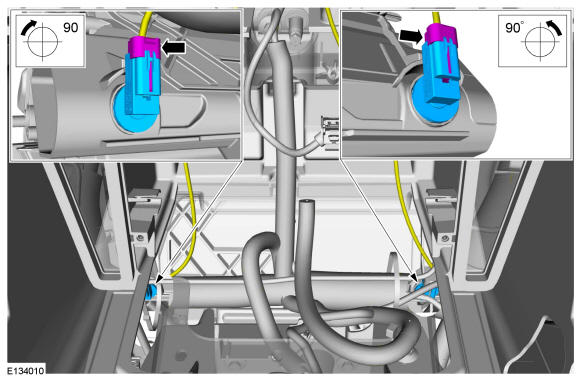

- Disconnect the electrical connector(s), rotate 90 degrees and remove the sensor(s).
