Driver Side Register: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the weatherstrip aside and remove the LH side instrument panel finish panel.
    GFD267399Courtesy of FORD MOTOR COMPANY

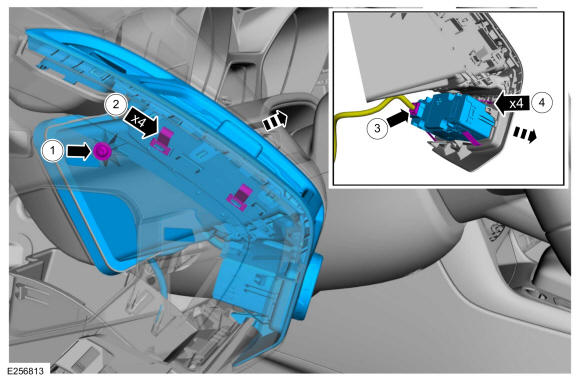

    1. Remove the retainer.
    2. Release the clips and remove the driver side register from the instrument panel.
    3. Disconnect the electrical connector.
    4. Release the clips and remove the headlamp switch.
GFD269459Courtesy of FORD MOTOR COMPANY
