Condenser Outlet Line - 1.0L EcoBoost (92kW/125PS): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article.
Remove the RH headlamp assembly. Refer to: Headlamp Assembly .
If equipped. Remove the retainers and the bezel.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and underbody shield.

Courtesy of FORD MOTOR COMPANY

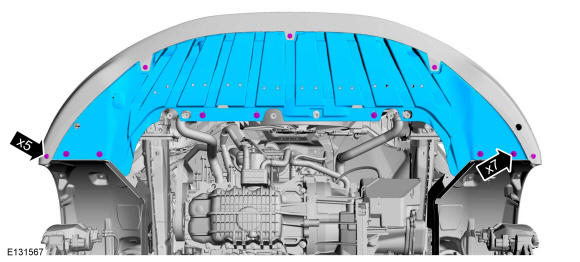

Remove the retainers and front underbody shield.

Courtesy of FORD MOTOR COMPANY

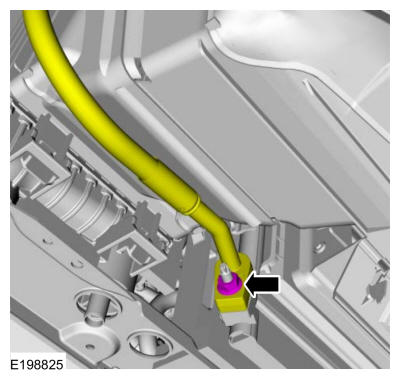

Remove the nut and A/C line.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

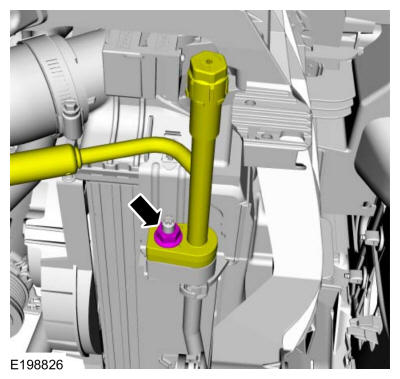

Remove the nut and A/C line.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

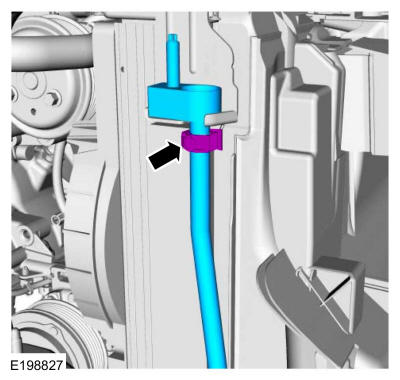

Release the tab and remove the A/C line.
- Make sure to cover any open ports to prevent debris from entering the system.

Courtesy of FORD MOTOR COMPANY
