Condenser - 2.3L EcoBoost (257kW/350PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article.

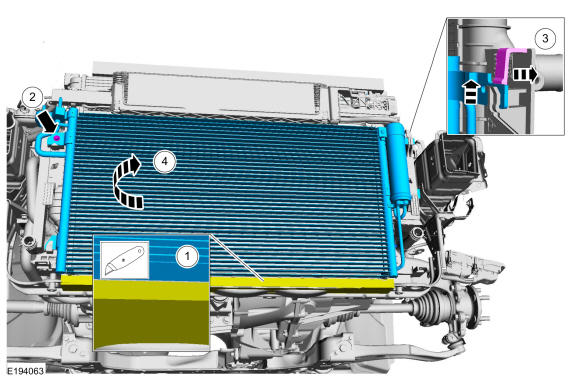

1. Torque
  :1.: 133 lb.in (15 Nm) 2.: 44 lb.in (5 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY
Refer to: CHARGE AIR COOLER (CAC) .

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

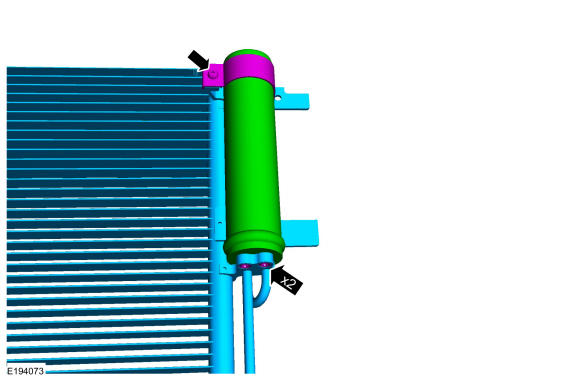

NOTE: This step is only necessary when installing a new component.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
