Condenser - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article.
Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
Remove the air cleaner. Refer to: Air Cleaner .
Disconnect the electrical connector and detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

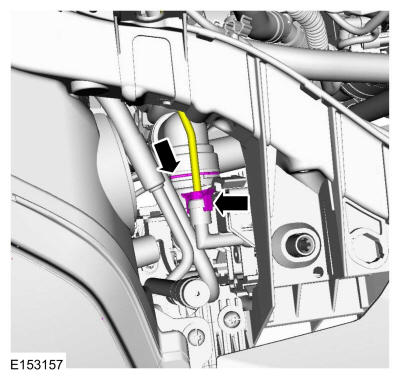

Depress the tabs and disconnect the coolant tube.

Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL position it on a hoist. Refer to: Jacking and Lifting - Overview .

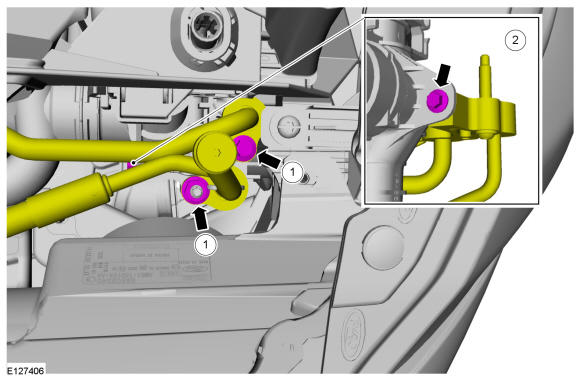

1. Remove the bolts, nut and disconnect the A/C lines from the condenser.
  Torque

  :1.: 159 lb.in (18 Nm) 2.: 89 lb.in (10 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY
Pull the radiator hoses spring clips until the end of the clips are in the detent on the quick connect coupling and disconnect the radiator hoses.

Courtesy of FORD MOTOR COMPANY

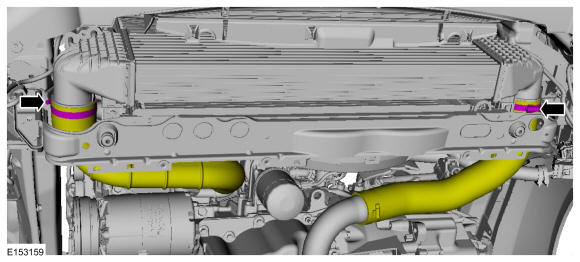

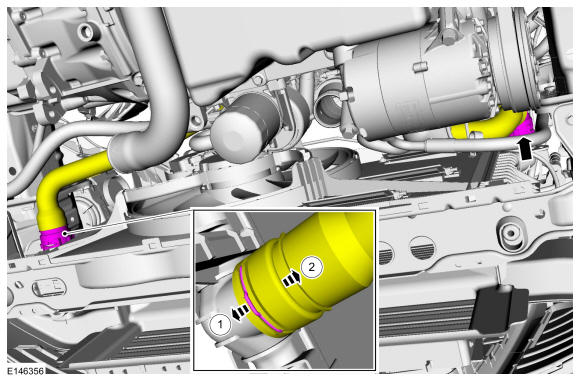

Loosen the clamps and disconnect the CAC pipes.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the 6-speed automatic transmission (6DCT250) cooler line retainers.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

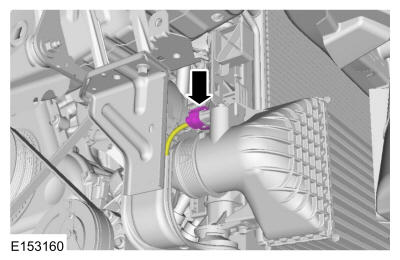

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
Detach the electrical connectors and the wiring harness retainer from the lower radiator support.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped, drill out the rivet that supports the lower support.

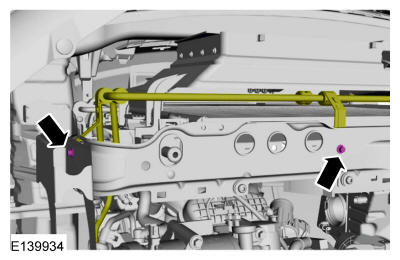

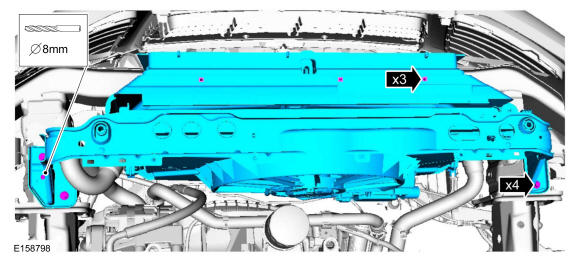

Remove the fasteners and the cooling module.

Courtesy of FORD MOTOR COMPANY

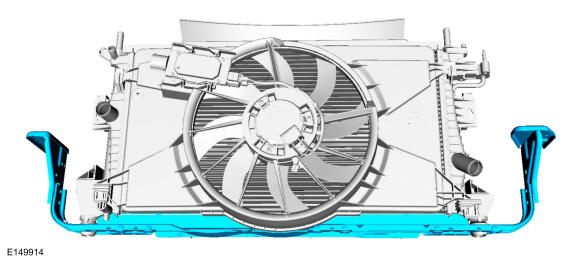

Remove the lower radiator support from the cooling module.

Courtesy of FORD MOTOR COMPANY

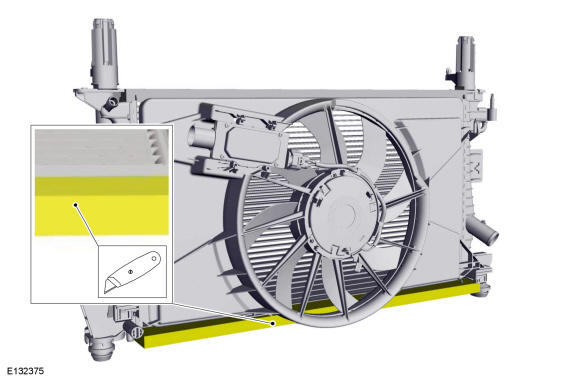

Cut the foam seal. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY

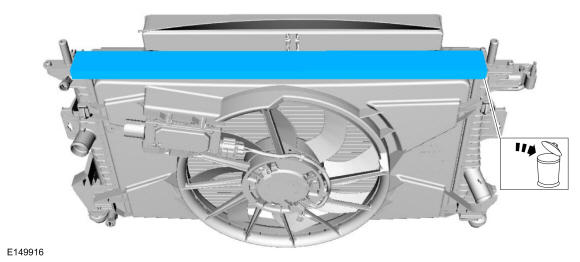

Remove and discard the foam pad. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY

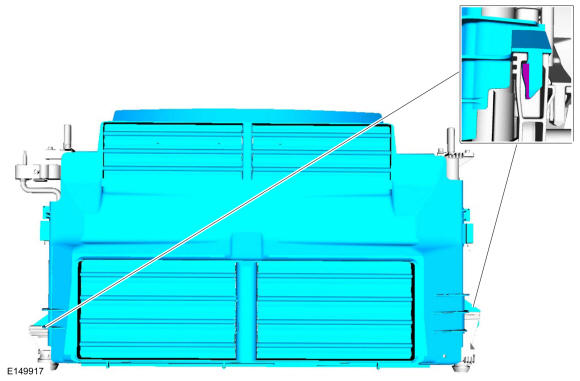

Remove the clips and remove the active grill shutter assembly.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the cooling fan motor and shroud.

Courtesy of FORD MOTOR COMPANY

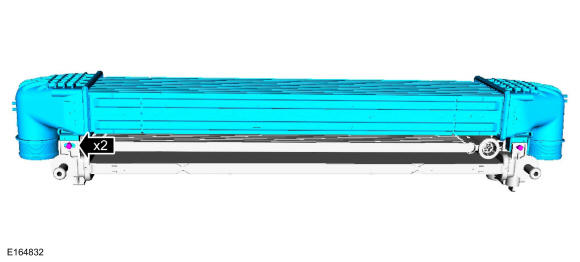

Remove the bolts and the CAC.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

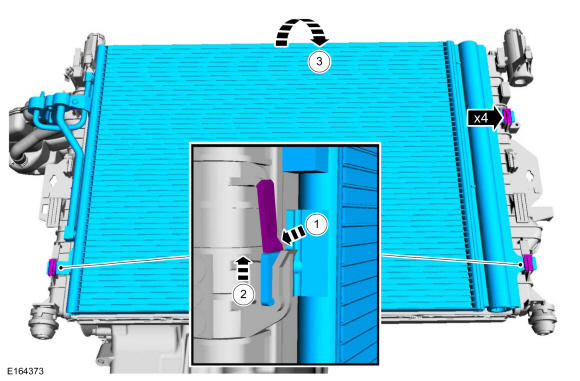

Release the clips and remove the A/C condenser.
