Blower Motor - Vehicles With: Electronic Manual Temperature Control (EMTC): Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the BCM. Refer to: Body Control Module (BCM) .
- Remove the BCM retainers and BCM bracket.
Torque
: 133 lb.in (15 Nm)
-
NOTE: To aid in the installation of the torx screw, a mirror and a magnetic socket may be necessary.

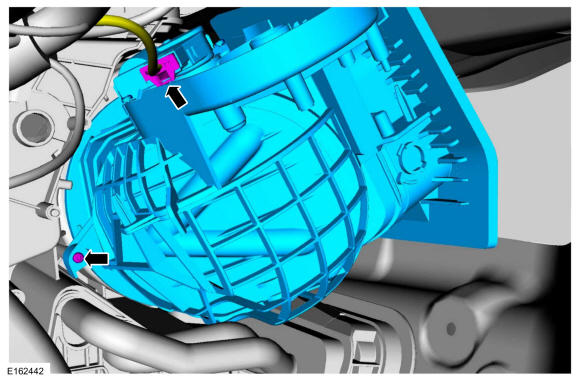

Disconnect the air inlet door actuator electrical connector, and remove the front air inlet duct retainer.
-
NOTE: To aid in the installation of the torx screw, a mirror and a magnetic socket may be necessary.
Install the ratchet, extension and socket as shown. Remove the upper air inlet duct retainer.
-
NOTE: To aid in the installation of the torx screw, a mirror and a magnetic socket may be necessary.
Install the ratchet, extension and socket as shown. Remove the lower air inlet duct retainer and the air inlet duct.
- Release the retaining clip holding the blower motor while an assistant from the passenger side compartment reaches through the blower motor cage and turns the blower motor housing 45 degrees clockwise to release and remove the blower motor.
