Air Inlet Duct - Vehicles With: Dual Automatic Temperature Control (DATC): Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the BCM. Refer to: BODY CONTROL MODULE (BCM)

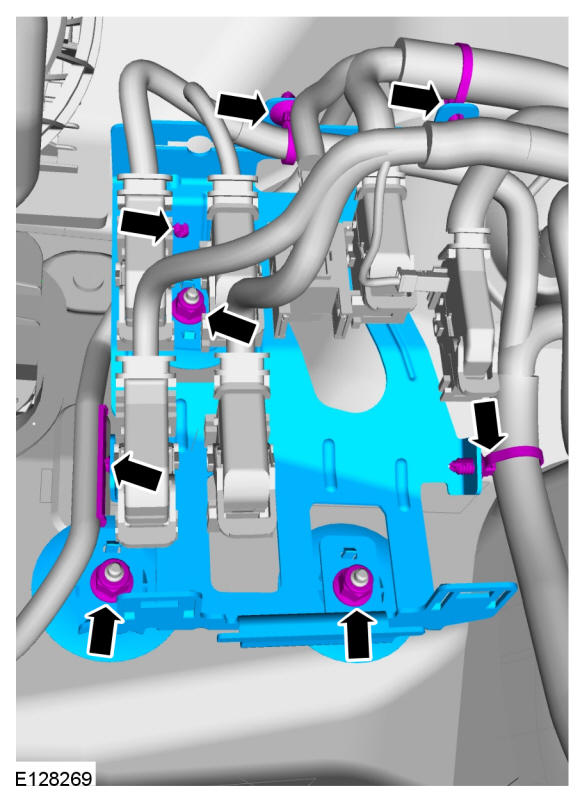

- Remove the retainers and BCM bracket.
Torque
: 133 lb.in (15 Nm)

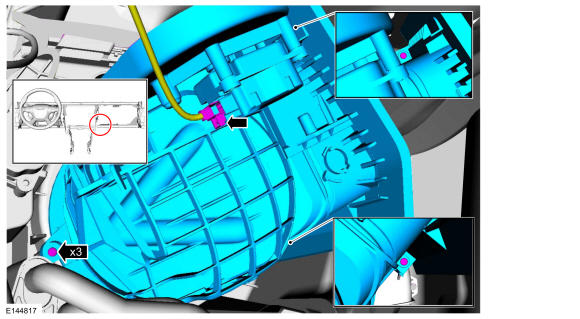

- Disconnect the electrical connector, remove the retainers and the air inlet duct.
