Air Conditioning (A/C) Compressor Outlet Line - 2.3L EcoBoost (257kW/350PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

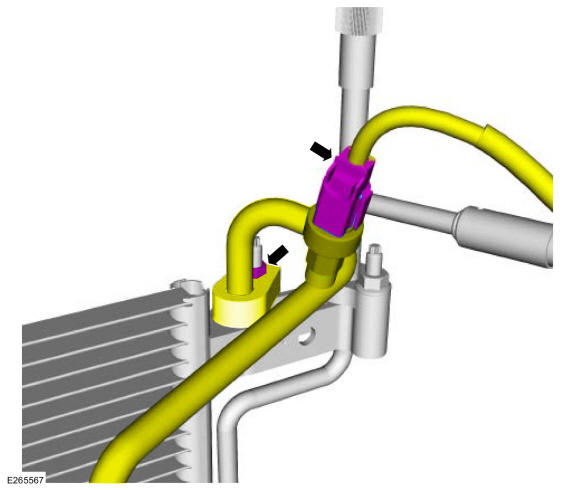

Disconnect the electrical connector, remove the nut and position aside the A/C line.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
Courtesy of FORD MOTOR COMPANY
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

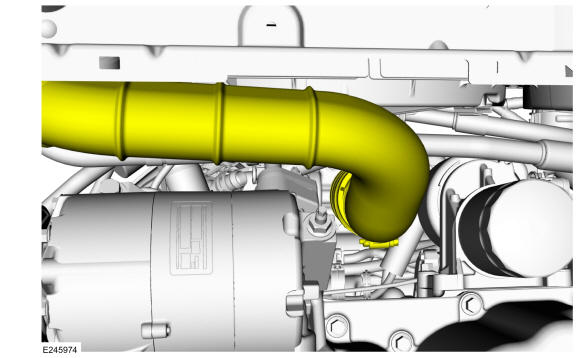

Loosen the CAC inlet tube clamp and disconnect the inlet tube.

Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the retainers and underbody shield.
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Position aside the CAC inlet tube.

Courtesy of FORD MOTOR COMPANY
Remove the nut and A/C line.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
