Air Conditioning (A/C) Compressor - 2.0L Duratec-HE (125kW/170PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article.
Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

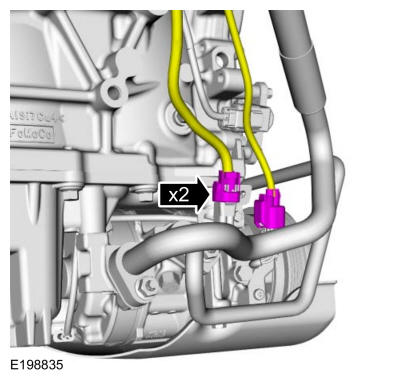

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

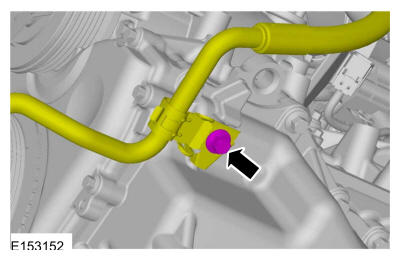

Remove the bolt and position the A/C line aside.
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

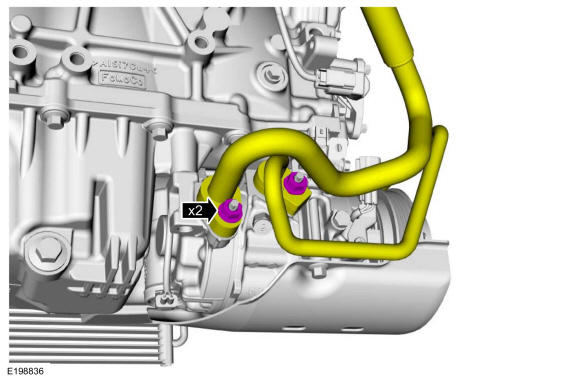

Remove the nuts and position the A/C lines aside.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

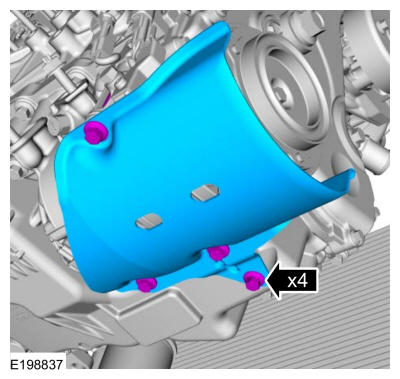

Remove the bolts and A/C compressor shield.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

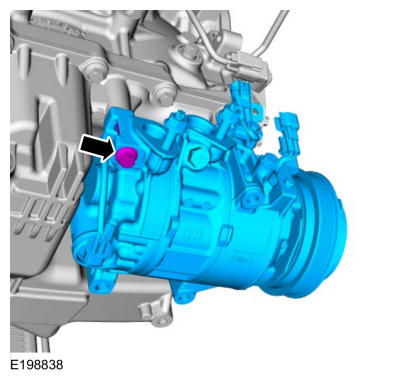

Remove the bolt and A/C compressor.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
