Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
2.0L EcoBoost shown, other compressors are similar.
- Remove the A/C compressor. Refer to: Air Conditioning (A/C) Compressor - 2.0L Duratec-HE (125kW/170PS) - MI4 . Refer to: Air Conditioning (A/C) Pressure Transducer - 2.0L Duratec-HE (125kW/170PS) - MI4 . Refer to: Air Conditioning (A/C) Pressure Transducer - 2.0L EcoBoost (184kW/250PS) - MI4 . Refer to: Air Conditioning (A/C) Compressor - 2.3L EcoBoost (257kW/350PS) - MI4 .

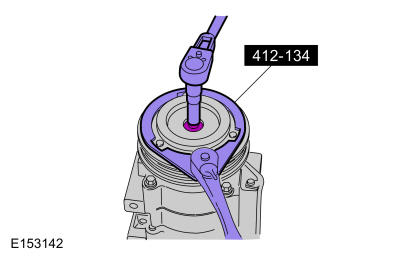

- Remove the A/C clutch disc bolt and the A/C clutch disc. Use Special Service Tool: 412-134 Holding Tool, Compressor Clutch.
Torque
: 124 lb.in (14 Nm)

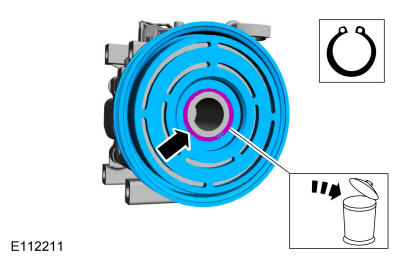

- Remove the A/C compressor pulley snap ring.
-
NOTE: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.

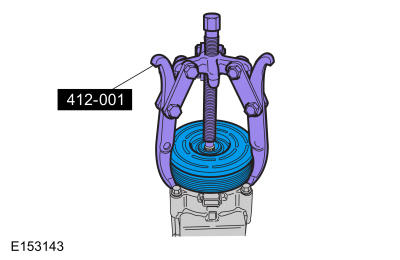

Remove the A/C pulley. Use Special Service Tool: 412-001 (T71P-19703-B) Remover, Compressor Pulley.

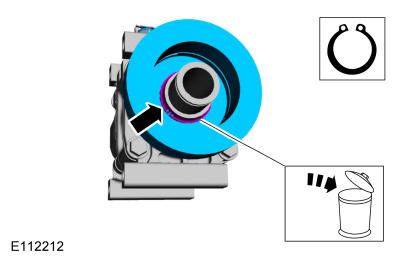

- Remove the A/C clutch field coil snap ring and the A/C clutch field coil.
