Accelerator Pedal: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

NOTE: The sport metallic accelerator pedal pad is not to be re-used. If the sport metallic accelerator pedal pad is removed it should be discarded and replaced with a new sport metallic accelerator pedal pad.

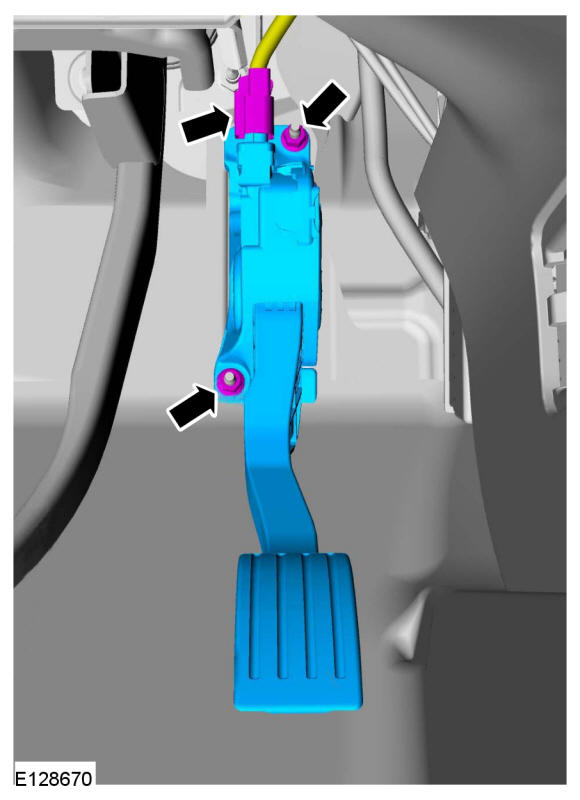

Disconnect the electrical connector, remove the bolts and the accelerator pedal assembly.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
