Fuel Lines: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Remove the battery tray. Refer to: Battery Tray .

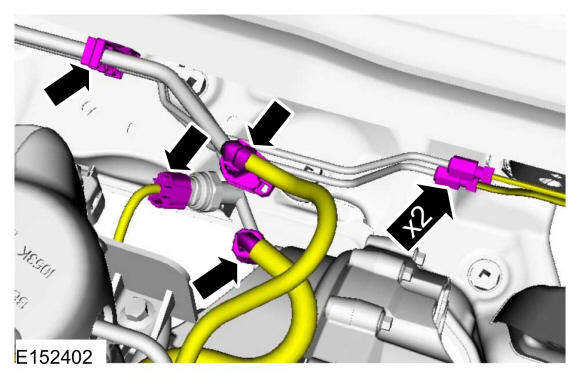

- Disconnect the fuel jumper tube-to-fuel injection pump spring lock coupling.
- Disconnect the EVAP vapor tube quick release coupling.
- Disconnect the fuel pressure sensor electrical connector.
- Disconnect the front brake tube fitting-to-middle brake tube fitting.
  Torque

  : 133 lb.in (15 Nm)
- Detach the clip.
Courtesy of FORD MOTOR COMPANY

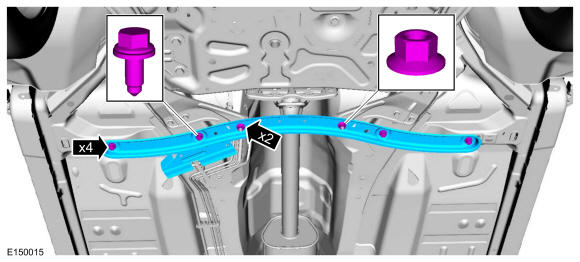

Remove the crossmember support crossbrace.
- Remove the crossmember support bracket-to-body bolts.
  Torque

  : 35 lb.ft (47 Nm)
- Remove the crossmember support bracket nuts.
  Torque

  : 35 lb.ft (47 Nm)
Courtesy of FORD MOTOR COMPANY

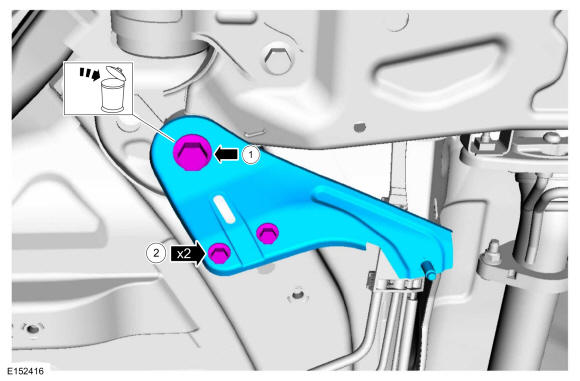

Remove the RH crossmember support bracket.
1. Remove and discard the RH subframe rearward bolt.
  Torque

  :Stage 1: 103 lb.ft (140 Nm) Stage 2: 180°
2. Remove the crossmember support bracket-to-body bolts.
  Torque

  : 46 lb.ft (62 Nm)
Courtesy of FORD MOTOR COMPANY

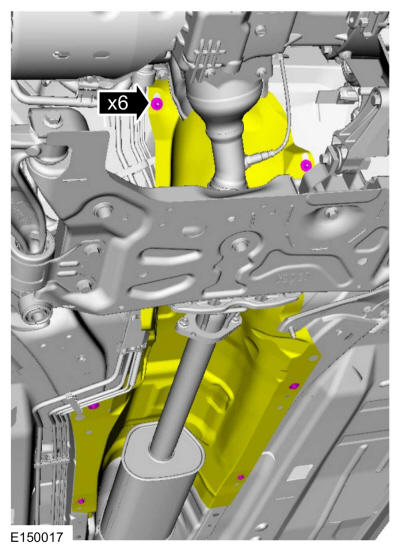

Remove the nuts and position aside the exhaust heat shield.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

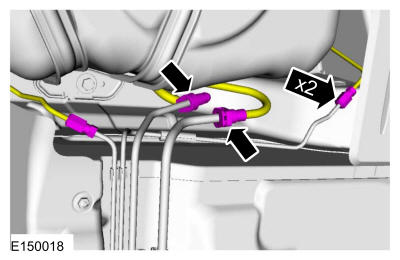

- Disconnect the fuel supply tube and EVAP vapor tube quick release coupling. Refer to: Quick Release Coupling .
- Disconnect the middle brake tube fitting-to-rear brake tube fitting.
  Torque

  : 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY

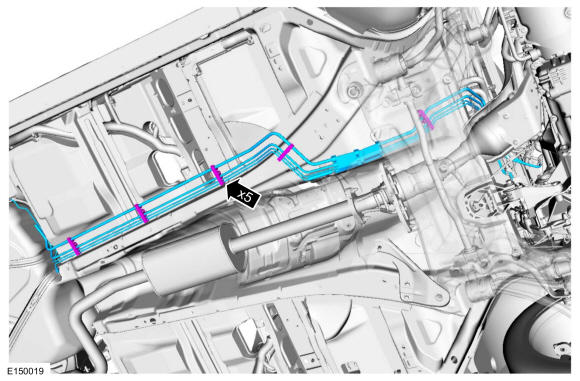

Disconnect the fuel tube bundle retainers and remove fuel tube bundle.

Courtesy of FORD MOTOR COMPANY
