Fuel Level Sender: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC)
. Failure to follow this instruction may result in serious personal injury.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Remove the Fuel Pump (FP) assembly. Refer to: Fuel Pump .

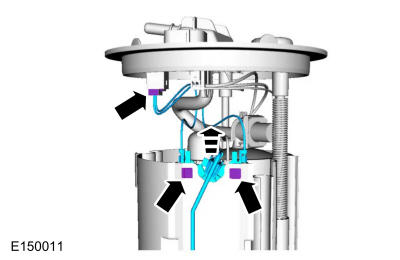

- Disconnect the fuel level sender electrical connector. Depress the lock tabs and slide the fuel level sender upwards, and remove the sender from the Fuel Pump (FP) assembly.
