Transmission Support Insulator: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine appearance cover.
    GFD264606Courtesy of FORD MOTOR COMPANY
  2. Remove the battery tray. Refer to: Battery Tray .
  3. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
    1. Remove the air deflector.
    2. Remove the underbody shield.
    GFD266159Courtesy of FORD MOTOR COMPANY
  5. Support the transmission. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
    GFD268624Courtesy of FORD MOTOR COMPANY
  6. Remove the battery tray bracket.

    • Detach the retainers and position aside the wiring harness.

    • Remove the nuts and the battery tray bracket.

    GFD268968Courtesy of FORD MOTOR COMPANY

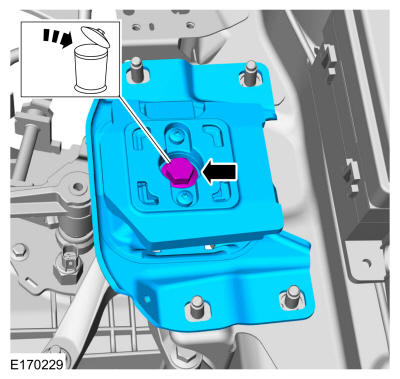

  7. Remove and discard the bolt and the transmission support insulator.
    GFD268969Courtesy of FORD MOTOR COMPANY
  8. Remove the bolts and the transmission support insulator bracket.
GFD268970Courtesy of FORD MOTOR COMPANY
