Transmission Support Insulator: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission support insulator bracket and the bolts.

    Torque

    : 59 lb.ft (80 Nm)

    GFD268970Courtesy of FORD MOTOR COMPANY
  2. Install the transmission support insulator. Make sure it is not resting on the frame.
    GFD266033Courtesy of FORD MOTOR COMPANY
    NOTE: Make sure that a new bolt is installed.
  3. Install the transmission support insulator and the bolt.

    Torque

    : 109 lb.ft (148 Nm)

    GFD268639Courtesy of FORD MOTOR COMPANY
  4. Remove the jack. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
    GFD268624Courtesy of FORD MOTOR COMPANY

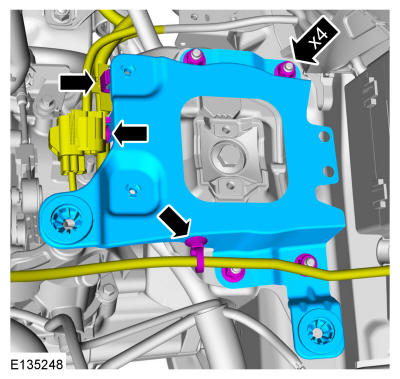

  5. Install the battery tray bracket.

    • Install the battery tray bracket and tighten the nuts.

    • Position the wiring harness and attach the retainers.

    GFD268968Courtesy of FORD MOTOR COMPANY
  6. Install the battery. Refer to: Battery .
    1. Install the underbody shield.
    2. Install the air deflector.
    GFD266068Courtesy of FORD MOTOR COMPANY
  8. Install the engine appearance cover.
GFD265854Courtesy of FORD MOTOR COMPANY
