Transmission Support Insulator - 2.3L EcoBoost (257kW/350PS) - MI4: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery tray. Refer to: Battery Tray .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the underbody shield.
- Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
- Move the battery tray bracket.
- Remove the nuts and the battery tray bracket.

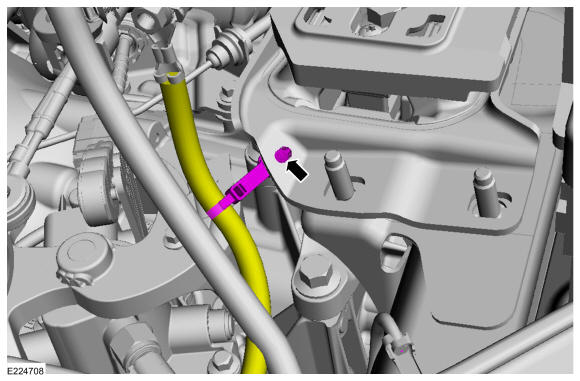

- Detach the retainers and position aside the wiring harness.
- Remove the bolt and the transmission support insulator.
