Transmission Support Insulator: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission support insulator bracket.

    Torque

    : 59 lb.ft (80 Nm)

    GFD268795Courtesy of FORD MOTOR COMPANY
  2. Install the transmission support insulator.

    Torque

    : 109 lb.ft (148 Nm)

    GFD268639Courtesy of FORD MOTOR COMPANY

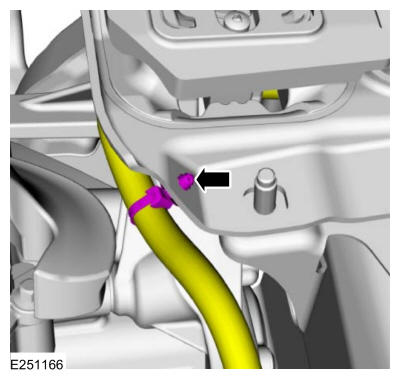

  3. Connect the wiring harness retainer to the transmission support insulator.
    GFD268794Courtesy of FORD MOTOR COMPANY
  4. Install the battery tray support bracket and the nuts. Connect the wiring harness retainers.

    Torque

    : 35 lb.ft (48 Nm)

    GFD268058Courtesy of FORD MOTOR COMPANY
  5. Install the battery tray. Refer to: Battery Tray .
  6. Install the underbody shield.
GFD266159Courtesy of FORD MOTOR COMPANY
