Transmission Support Insulator: Installation
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Make sure that a new bolt is installed.
Torque
: 109 lb.ft (148 Nm)
Remove the following items:

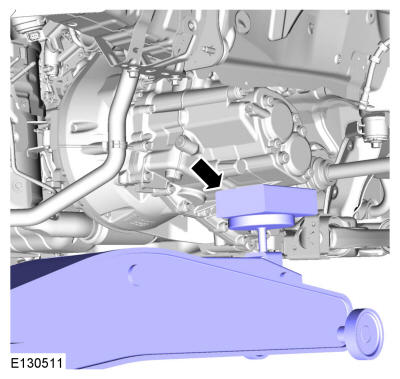

- Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack
Refer to: JACKING AND LIFTING - OVERVIEW .
If equipped.
Lower the Vehicle.

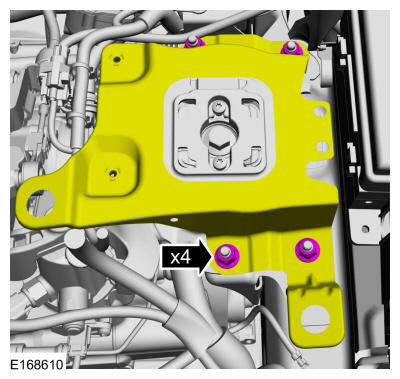

Torque
: 35 lb.ft (48 Nm)
Refer to: BATTERY TRAY
