Upshift Paddle Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: DRIVER AIRBAG

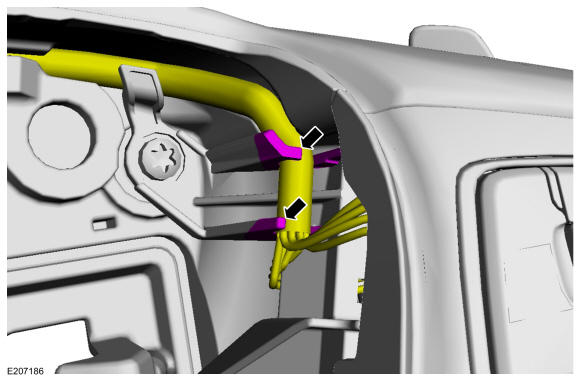

  2. Disconnect the wiring harness.
    GFD268443Courtesy of FORD MOTOR COMPANY

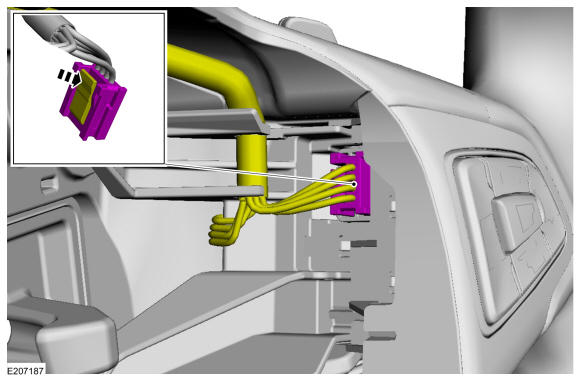

  3. Disconnect the RH steering wheel switch assembly electrical connector.
    GFD268444Courtesy of FORD MOTOR COMPANY

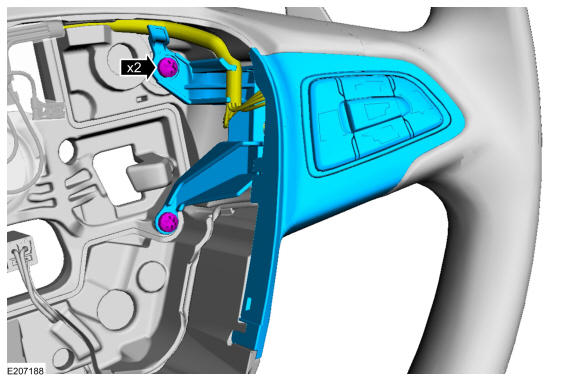

  4. Remove the bolts and the RH steering wheel switch assembly.

    Torque

    : 44 lb.in (5 Nm)

    GFD268445Courtesy of FORD MOTOR COMPANY

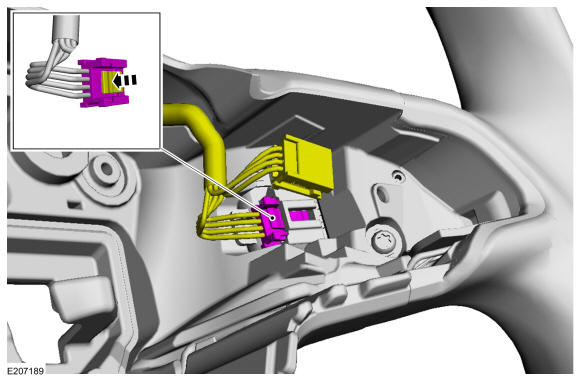

  5. Disconnect the upshift paddle switch electrical connector.
    GFD268446Courtesy of FORD MOTOR COMPANY

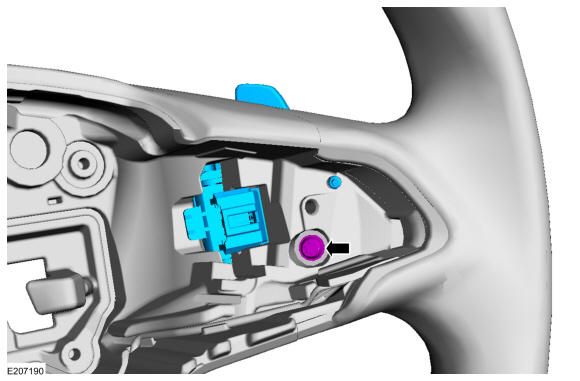

  6. Remove the bolt and the upshift paddle switch.

    Torque

    : 44 lb.in (5 Nm)

GFD268447Courtesy of FORD MOTOR COMPANY
