Selector Lever Knob: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC)
. Failure to follow this instruction may result in serious personal injury.
NOTE:
The O/D cancel switch and the SelectShift™ switch are part of the selector lever knob. To install a new O/D cancel switch or SelectShift™ switch, a new selector lever knob must be installed.
- Refer to: Health and Safety Precautions .

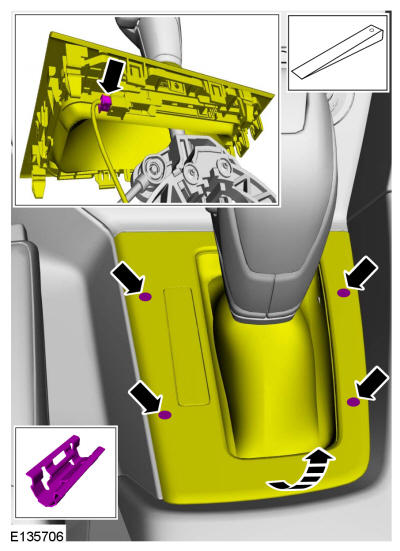

- Disengage the retaining tabs and lift the selector lever bezel up and disconnect the electrical connectors.
- Lift the selector lever bezel up.
-
NOTE: If equipped.
If equipped, disconnect the SelectShift™ switch electrical connector.

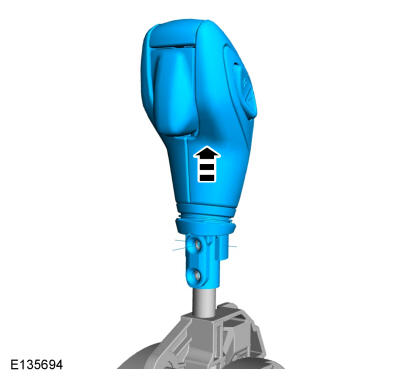

- Remove the selector lever knob screws.
- Remove the selector lever knob.
