Selector Lever Cable: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

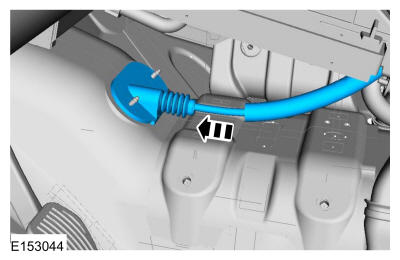

Position the selector lever cable in the vehicle.

Courtesy of FORD MOTOR COMPANY

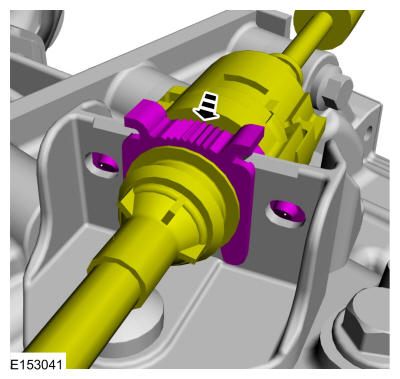

Connect the selector lever cable to the retainer.

Courtesy of FORD MOTOR COMPANY
Position the exhaust heat shield and install the retainers.

Courtesy of FORD MOTOR COMPANY

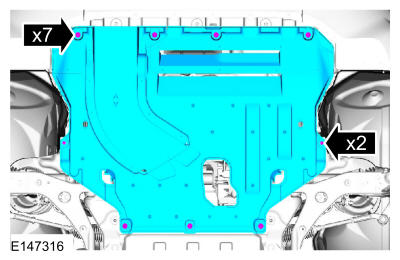

Install the engine undershield and the fasteners.

Courtesy of FORD MOTOR COMPANY
Connect the selector lever cable to the selector lever.

Courtesy of FORD MOTOR COMPANY
Install the selector lever cable clip bolt.

Courtesy of FORD MOTOR COMPANY

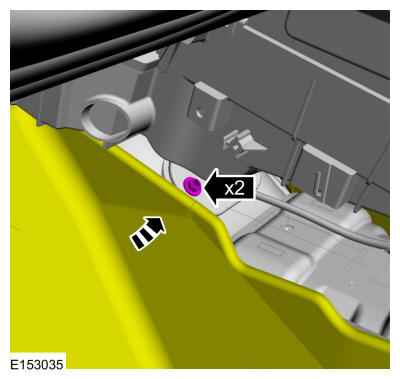

Install the nuts and position the carpet.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the instrument panel bracket and the bolts.
  Torque

  : 89 lb.in (10 Nm)
2. Torque
  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
Install the floor console. Refer to: Floor Console - Vehicles With: Center Armrest . Refer to: Floor Console - Vehicles Without: Center Armrest .
Connect the selector lever cable to the transmission.

Courtesy of FORD MOTOR COMPANY

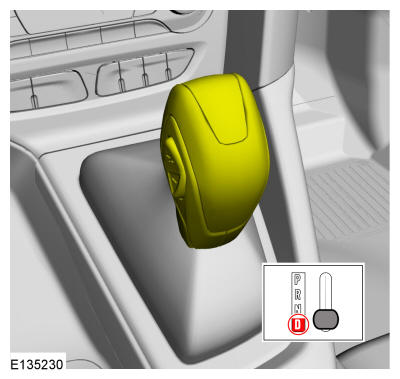

Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY

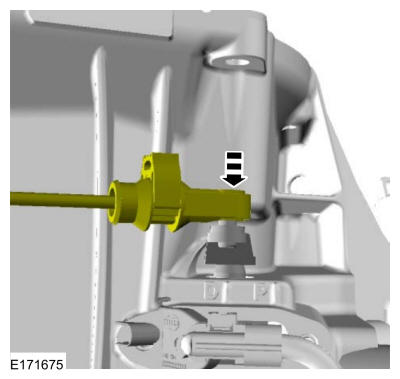

Unlock the selector lever cable adjuster.
- Pry the selector lever cable adjuster ears apart.
- Pull the selector lever adjuster lock out.
Courtesy of FORD MOTOR COMPANY

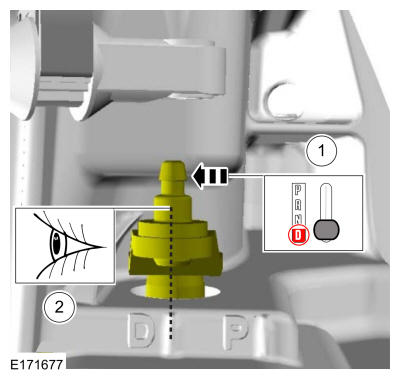

Verify the transmission manual lever is in D.

Courtesy of FORD MOTOR COMPANY
Connect the selector lever cable to the transmission manual lever.

Courtesy of FORD MOTOR COMPANY

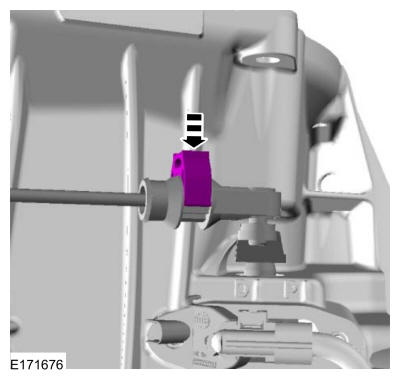

Lock the adjuster.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Verify that the vehicle only starts in P and N and the reverse lamps illuminate in R.
