Downshift Paddle Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: DRIVER AIRBAG .

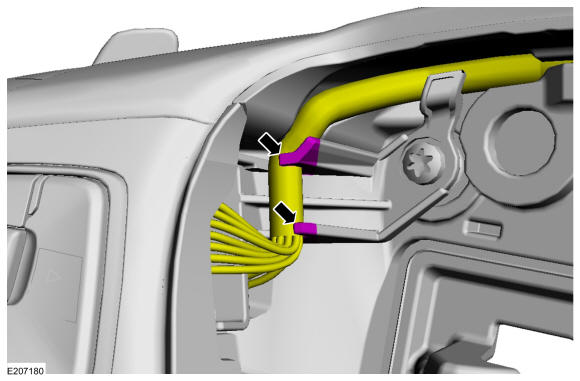

  2. Disconnect the wiring harness.
    GFD268414Courtesy of FORD MOTOR COMPANY

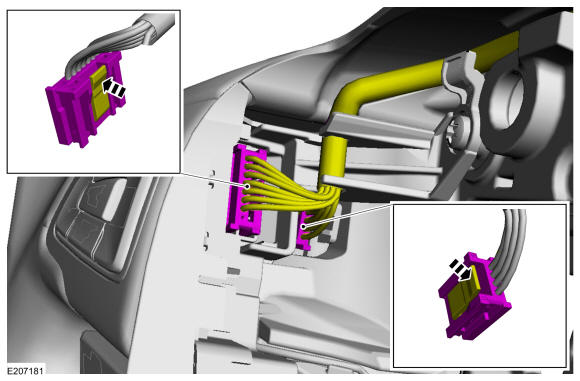

  3. Disconnect the electrical connectors.
    GFD268415Courtesy of FORD MOTOR COMPANY

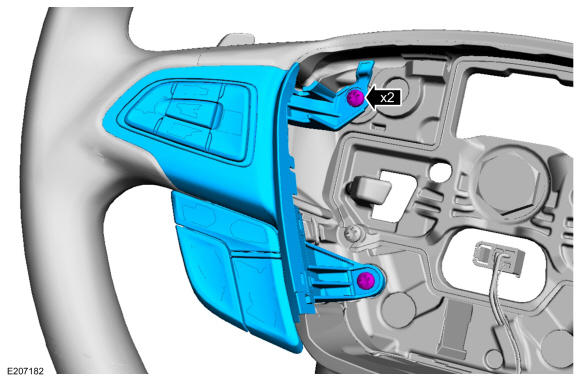

  4. Remove the bolts and the LH steering wheel switch assembly.

    Torque

    : 44 lb.in (5 Nm)

    GFD268416Courtesy of FORD MOTOR COMPANY

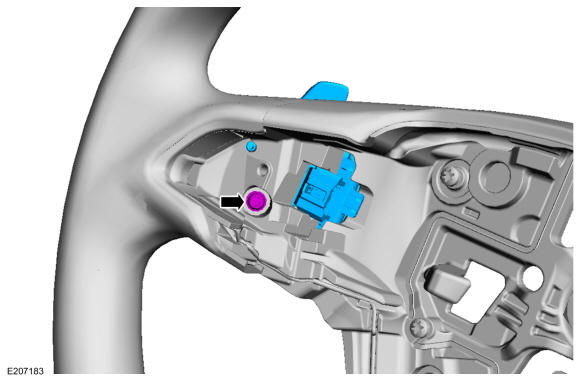

  5. Remove the bolt and the downshift paddle switch.

    Torque

    : 44 lb.in (5 Nm)

GFD268417Courtesy of FORD MOTOR COMPANY
