Selector Lever Cable Adjustment

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

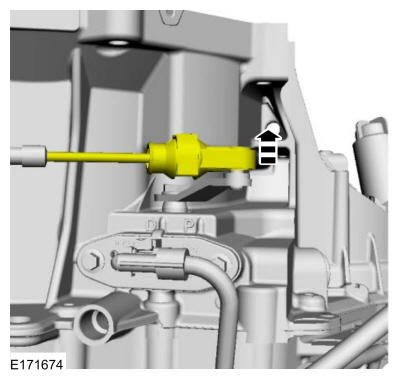

Disconnect the selector lever cable end from the manual control lever.

Courtesy of FORD MOTOR COMPANY
Set the selector lever to the drive D position.

Courtesy of FORD MOTOR COMPANY
Unlock the adjuster.
1. Spread open the ears of the lock tab.
2. Pull out the lock tab.
Courtesy of FORD MOTOR COMPANY
1. Set the manual control lever to the drive D position.
2. Inspect the manual control lever.
Courtesy of FORD MOTOR COMPANY
With the selector lever cable adjuster locking tab released, connect the selector lever cable end to the manual control lever.

Courtesy of FORD MOTOR COMPANY
Slide the locking tab to lock the selector lever cable adjuster.

Courtesy of FORD MOTOR COMPANY
NOTE: Perform the steps for transmission range (TR) sensor adaptive learning.

Refer to: Transmission Control Module (TCM) Adaptive Learning .
Verify that the vehicle only starts in P and N and the reverse lamps illuminate in R.
