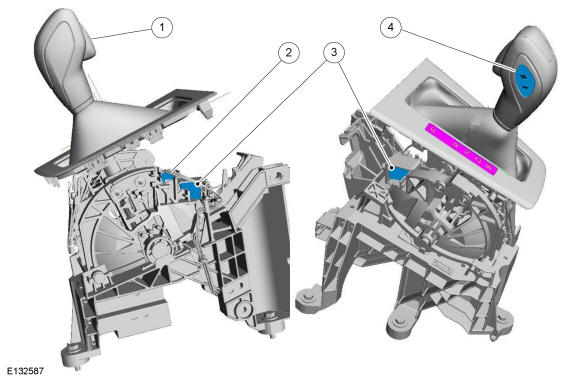

Selector Lever with SelectShift™ Switch
| Item | Description |
|---|---|
| 1 | Parking lock release button |
| 2 | Brake shift interlock actuator lever |
| 3 | Brake shift interlock actuator |
| 4 | SelectShift™ switch |
The selector lever with a SelectShift™ switch has the following positions:
- P
- R
- N
- D
- S
In the selector lever position S, the transmission can be manually shifted by operating the SelectShift™ switch which is located on the side of the selector lever or by the paddle switches mounted on the steering wheel. The SelectShift™ switch is hard-wired to the TCM. The upshift or downshift signal is transmitted to the TCM via two wires.
Only with the ignition switched on, the brake pedal pressed and the parking lock release button pressed, can the selector lever be moved out of the P position.
The engine can only be started in the P or N position.
The following components are integrated in the selector lever with a SelectShift™ switch assembly:
- SelectShift™ switch
- Brake shift interlock actuator
- LED for the selector lever position display
The selector lever with an O/D cancel switch has the following positions:
- P
- R
- N
- D
- L (Low)
The following components are integrated in the selector lever with a O/D cancel switch assembly:
- O/D cancel switch
- Brake shift interlock actuator
- LED for the selector lever position display
