Transmission Support Insulator: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the battery tray. Refer to: Battery Tray .
  3. Remove the engine undershield. Refer to: Engine Undershield .

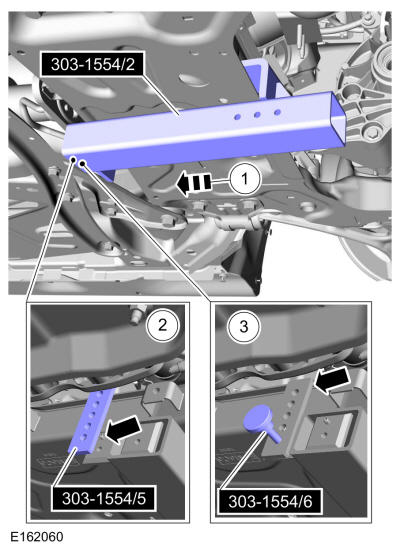

  4. Install the special tools. Install Special Service Tool: 303-1554 Engine Support Bar.
    GFD268054Courtesy of FORD MOTOR COMPANY
  5. Install the special tools. Install Special Service Tool: 303-1554 Engine Support Bar.
    GFD268055Courtesy of FORD MOTOR COMPANY

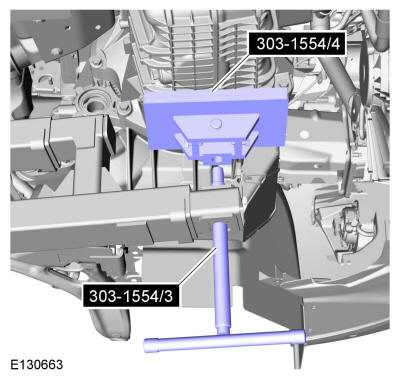

  6. Install the special tools. Install Special Service Tool: 303-1554 Engine Support Bar.
    GFD268056Courtesy of FORD MOTOR COMPANY

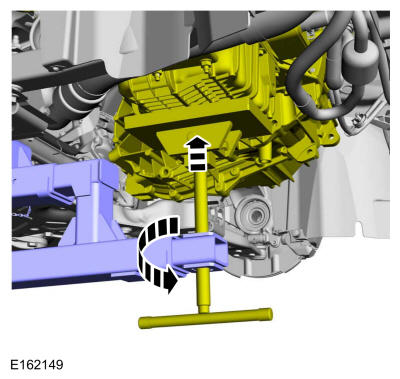

  7. Using the special tools, support the engine. Use Special Service Tool: 303-1554 Engine Support Bar.
    GFD268057Courtesy of FORD MOTOR COMPANY

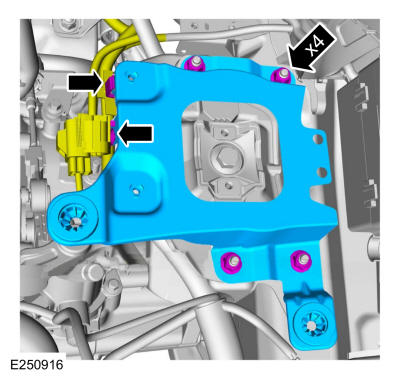

  8. Disconnect the wiring harness retainers. Remove the nuts and the battery tray support bracket.
    GFD268058Courtesy of FORD MOTOR COMPANY

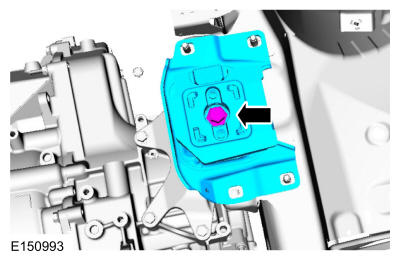

  9. Remove the bolt and the transmission support insulator.
GFD268059Courtesy of FORD MOTOR COMPANY
