Transmission Support Insulator: Installation
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
-

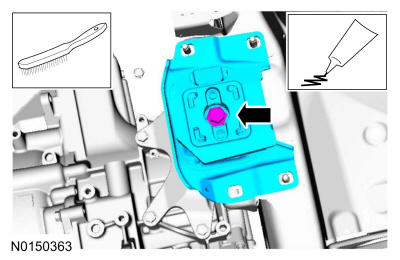

NOTE: Clean the transmission support insulator bolt using a wire brush and apply Motorcraft® Threadlock and Sealer to the threads.
Install the transmission support insulator and the bolt.
Material: Motorcraft® Threadlock and Sealer / TA-25-B
Torque: 109 lb.ft (148 Nm)
- Install the battery tray support bracket and the nuts. Connect the wiring harness retainers.
Torque: 35 lb.ft (48 Nm)
- Install the engine undershield. Refer to: Engine Undershield .
- Install the battery tray. Refer to: Battery Tray .
