Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the valve cover. Refer to: Valve Cover .

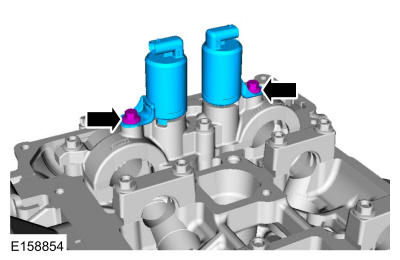

  3. Remove the bolts and the VCT oil control solenoids.

    Torque

    : 89 lb.in (10 Nm)

GFD267350Courtesy of FORD MOTOR COMPANY
