Mass Air Flow (MAF) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

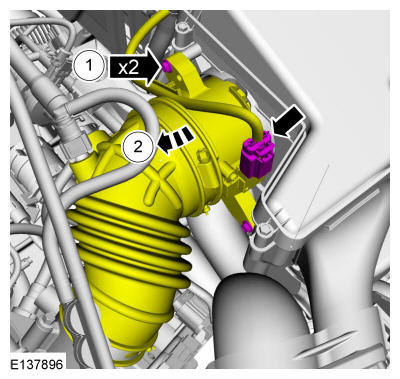

1. Remove the bolts and disconnect the MAF sensor electrical connector.
  Torque

  : 71 lb.in (8 Nm)
2. Position aside the air outlet tube.
Courtesy of FORD MOTOR COMPANY

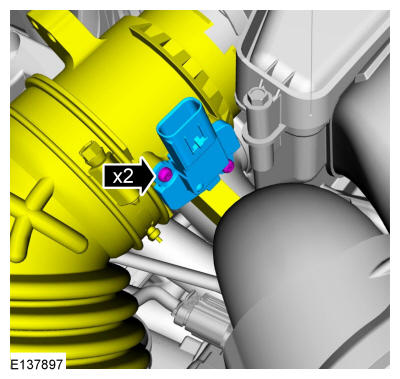

Remove the retainers and the MAF sensor.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
