Knock Sensor (KS): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
Remove the intake manifold. Refer to: Intake Manifold .
NOTE: Note the position of the components before removal.

NOTE: Make sure that the components are installed to the position noted before removal.

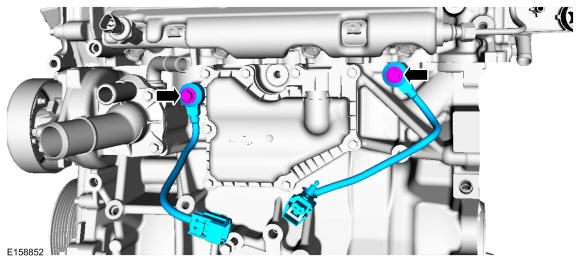

Remove the bolts and the KS.

Torque

: 177 lb.in (20 Nm)
