Heated Oxygen Sensor (HO2S): Installation
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

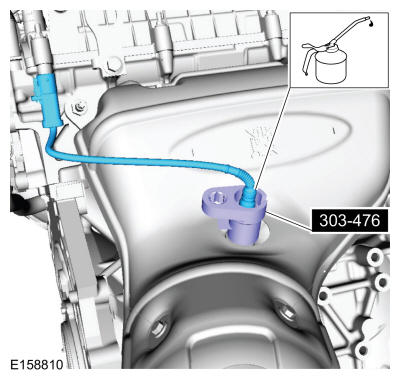

- Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula below. Install the heated oxygen sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material
: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque
: 35 lb.ft (48 Nm)

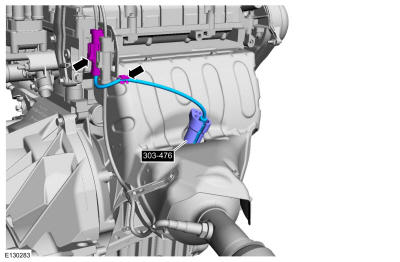

- Connect the HO2S electrical connector, attach the wiring harness retainer and remove the special tool.
