Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  4. NOTE: During repair procedure, cleanliness is extremely important. Any foreign material, including any material created while cleaning or removing components that enters the fuel supply passages may cause engine failure.
    NOTE: Use compressed air to remove any foreign material from around the Fuel Rail Pressure (FRP) sensor area before removal.

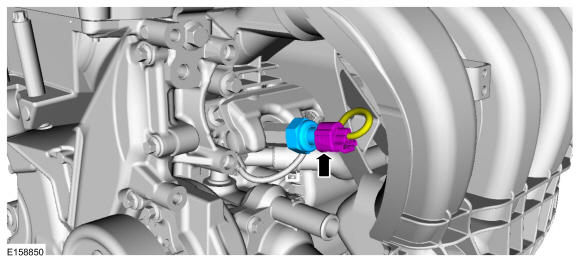

    • Disconnect the FRP sensor electrical connector.

    • Remove the FRP sensor.

GFD267342Courtesy of FORD MOTOR COMPANY
