Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

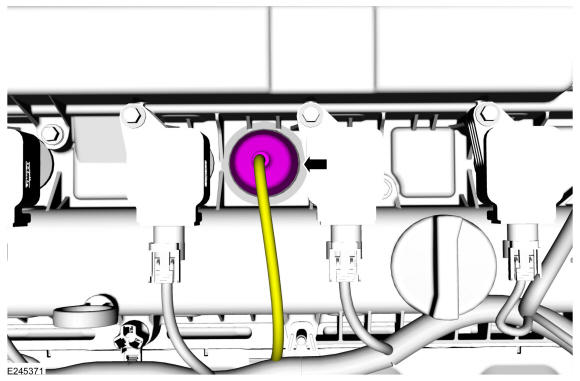

  1. Remove the cover and disconnect the electrical connector.
    GFD267339Courtesy of FORD MOTOR COMPANY

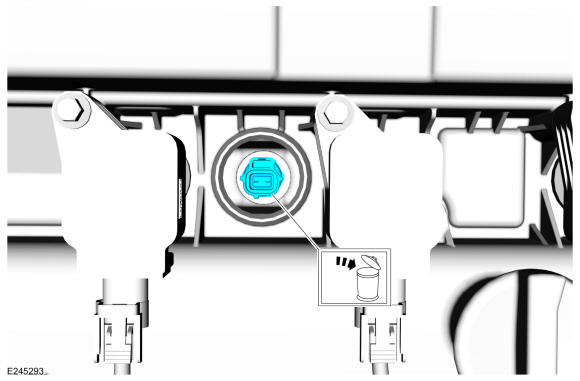

  2. Remove the CHT sensor.

    Torque

    : 89 lb.in (10 Nm)

GFD267340Courtesy of FORD MOTOR COMPANY
