Crankshaft Position (CKP) Sensor: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not tighten the bolts at this time.

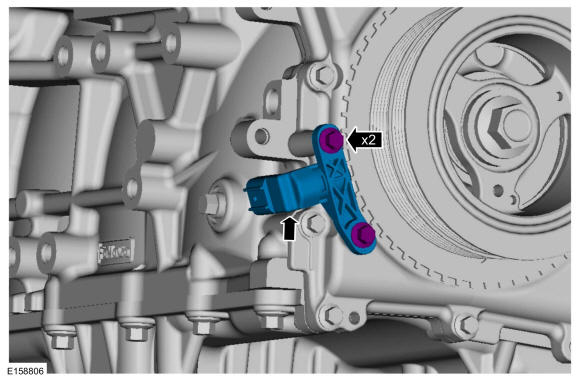

Install the CKP sensor and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY

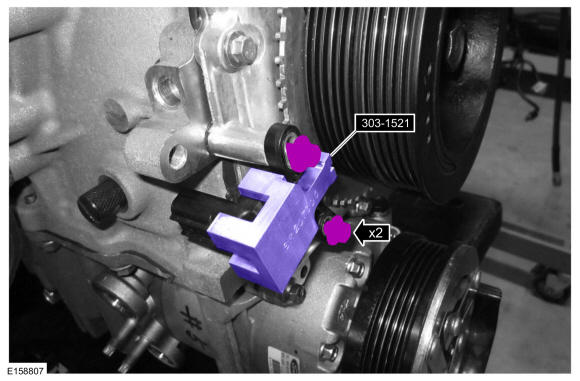

- Install the special service tool. If the special service tool mark does not align with the TDC marked tooth on the crankshaft pulley, loosen the CKP sensor bolts and adjust the sensor until the tool is installed. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
- Tighten the CKP sensor bolts.
  Torque

  : 62 lb.in (7 Nm)
- Remove the special service tool.
Courtesy of FORD MOTOR COMPANY
Connect the CKP electrical connector.

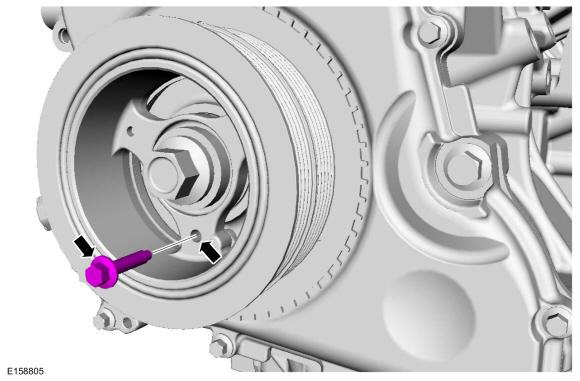

Remove the 6 mm x 18 mm bolt.

Courtesy of FORD MOTOR COMPANY

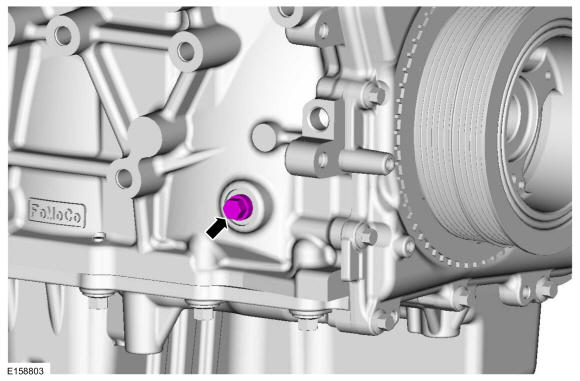

Remove the special tool and install the cylinder block plug. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RHF fender splash shield. Refer to: FENDER SPLASH SHIELD .
Install the RH wheel and tire. Refer to: Wheel and Tire .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
