Catalyst Monitor Sensor: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

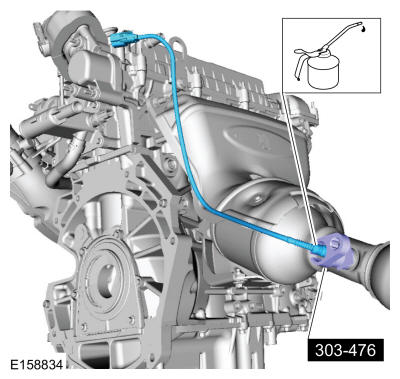

Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter formula below. Install the catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Material

: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY

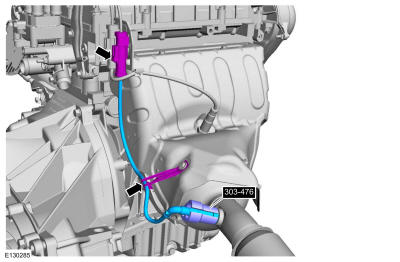

Connect the catalyst monitor sensor electrical connector and attach the wiring harness retainer and remove the special tool.

Courtesy of FORD MOTOR COMPANY
