Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .

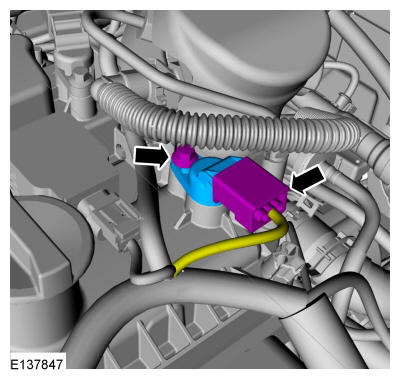

- LH CMP sensor Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor.
Torque
: 53 lb.in (6 Nm)

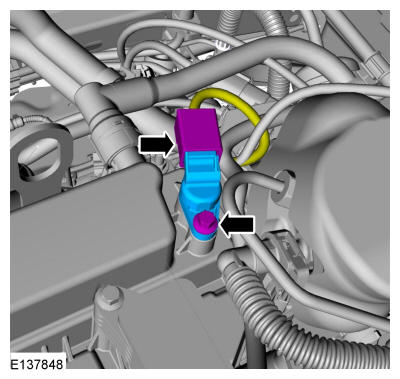

- RH CMP sensor Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor.
Torque
: 53 lb.in (6 Nm)
