Electronic Engine Controls - Component Location
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

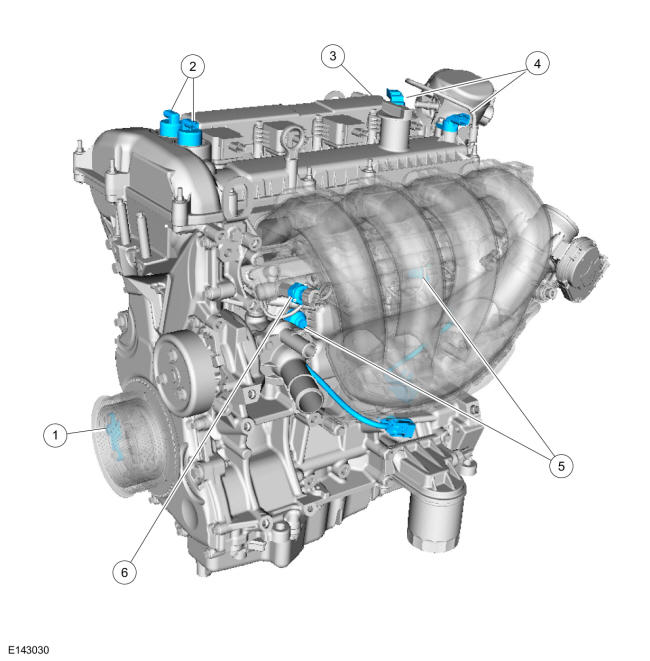

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
6C315
Comments:
CKP sensor |
| 2 |
6M280
Comments:
VCT oil control solenoid |
| 3 |
12A648
Comments:
ECT sensor |
| 4 |
6B288
Comments:
CMP sensor |
| 5 |
12A699
Comments:
KS |
| 6 |
9F972
Comments:
FRP sensor |

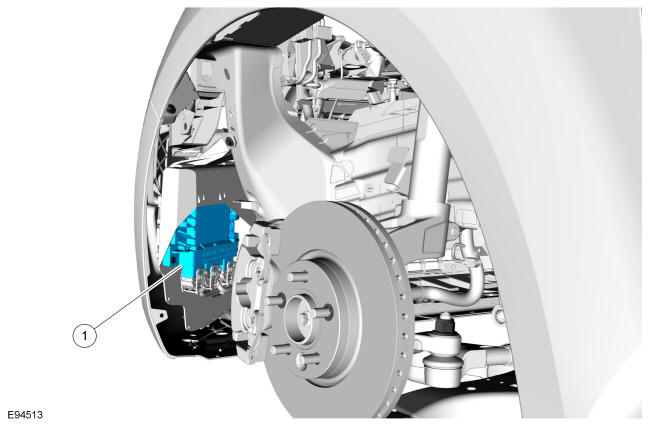

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
12A650
Comments:
PCM |
