Catalyst Monitor Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the engine appearance cover.
- Remove the air cleaner outlet tube.
Torque
: 44 lb.in (5 Nm)

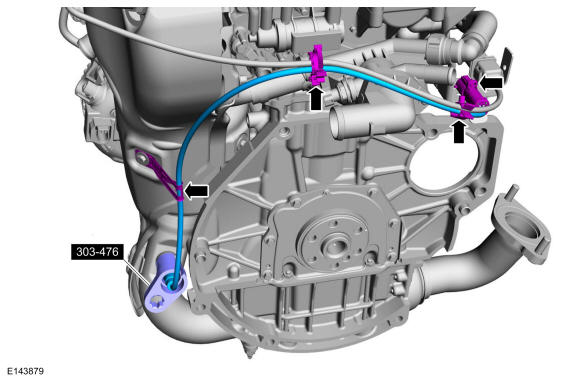

- Using the special tool remove the Catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
