Starter Motor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health and Safety Precautions .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .

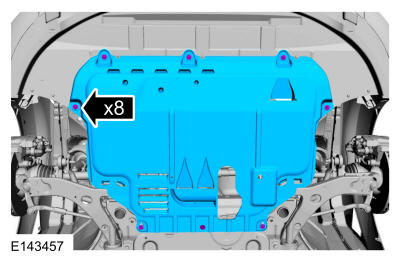

If equipped, remove the underbody shield retainers and then remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
1. Remove the starter motor solenoid control wire retaining nut and then disconnect the starter motor solenoid control wire.
  Torque

  : 53 lb.in (6 Nm)
2. Remove the starter motor solenoid positive battery cable retaining nut and then disconnect the starter motor solenoid battery cable.
  Torque

  : 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

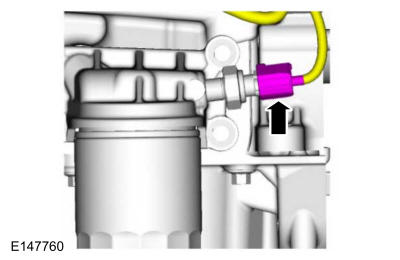

Disconnect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY

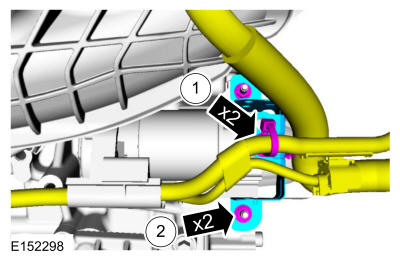

1. Detach the wiring harness retainers and position the wiring harness aside.
2. Remove the starter motor bracket nuts and then remove the starter motor bracket.
  Torque

  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the starter motor retaining bolts and then remove the starter motor.
Torque

: 26 lb.ft (35 Nm)
