Air Conditioning (A/C) Compressor Belt: Installation
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE:

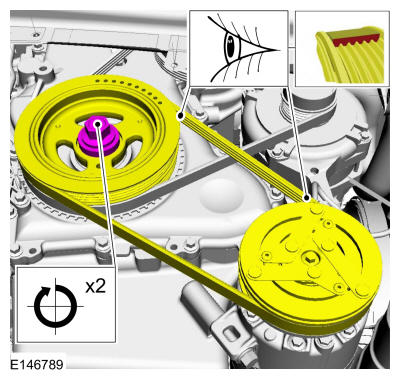

Only rotate the crankshaft clockwise.
NOTE:
Make sure that a new component is installed.

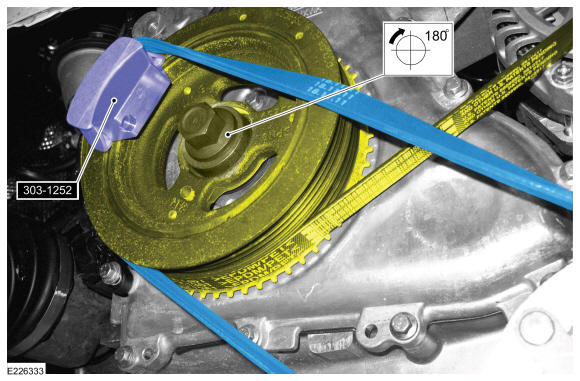

Use Special Service Tool: 303-1252 Stretchy Belt Remover/ Installer Tool.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
