Accessory Drive Belt Tensioner: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Serious injury may occur if the engine is accidently started by another person during service work. Remove the key from the vehicle to prevent unauthorized starts. Failure to follow this instruction may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.

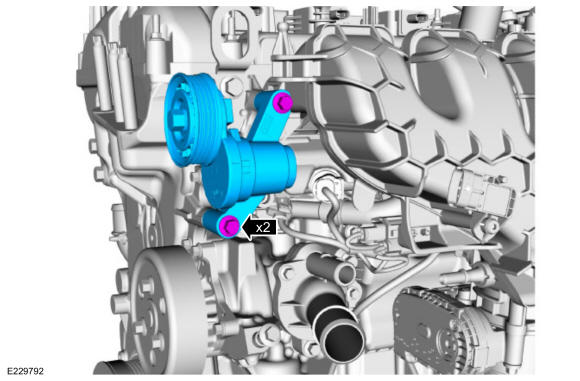

Remove the bolts and the accessory drive belt tensioner.
Torque
: 18 lb.ft (25 Nm)
