Air Conditioning (A/C) Compressor Belt: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped. Remove the retainers and the splash shield plate.
- If equipped. Remove the retainers and the splash shield.

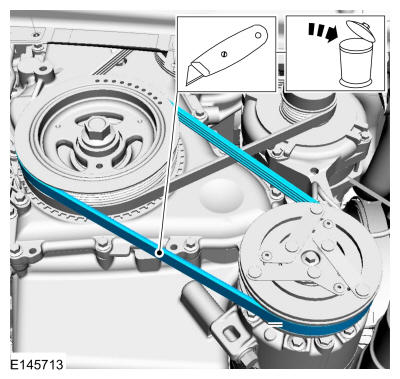

- Cut and discard the A/C compressor belt. Use the General Equipment: Knife
