Air Conditioning (A/C) Compressor Belt: Installation
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Make sure that a new component is installed.

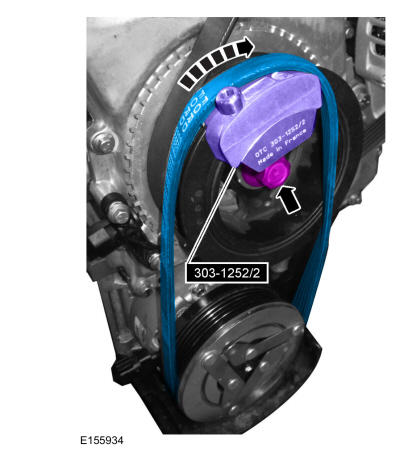

Position the belt and installer tool as shown. Use Special Service Tool: 303-1252 Stretchy Belt Remover/ Installer Tool.
-

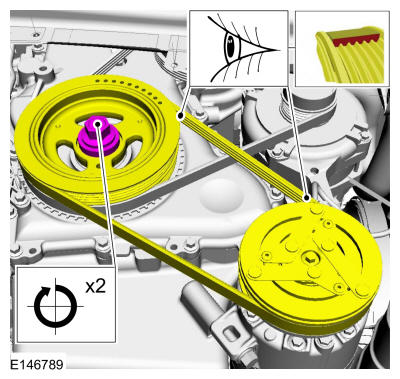

NOTE: After installation, make sure the A/C compressor belt is correctly seated on all pulleys.
Rotate the crankshaft pulley clockwise to install the belt.
- If equiped. Install the splash shield and the retainers.
- If equipped. Install the splash shield plate and the retainers.
