Accessory Drive Belt: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt  .
  2. Remove the engine appearance cover.
    GFD264606Courtesy of FORD MOTOR COMPANY

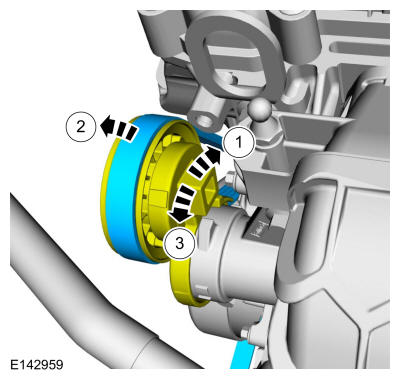

  3. Rotate the accessory drive belt tensioner counter clockwise and remove the accessory drive belt.
GFD265962Courtesy of FORD MOTOR COMPANY
