Accessory Drive Belt Tensioner: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|
- Rotate the accessory drive belt tensioner counter clockwise and position aside the accessory drive belt.
 Courtesy of FORD MOTOR COMPANY
|

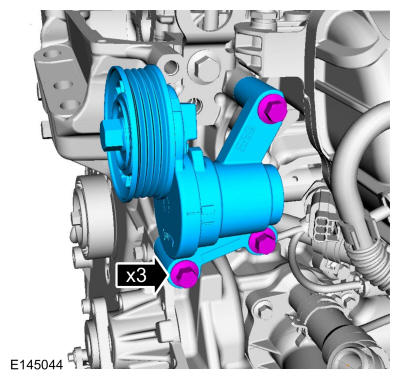

- Remove the bolts and the accessory drive belt tensioner.
Torque
: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|
