Accessory Drive Belt Idler Pulley: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to: Accessory Drive Belt .

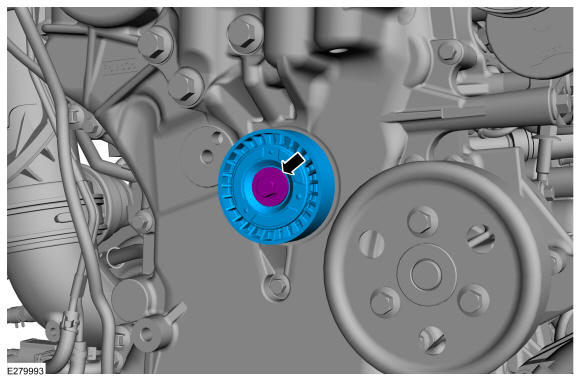

  2. Loosen the bolt and remove the accessory drive belt idler pulley.

    Torque

    : 18 lb.ft (25 Nm)

GFD267172Courtesy of FORD MOTOR COMPANY
