Accessory Drive - Overview: Overview
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

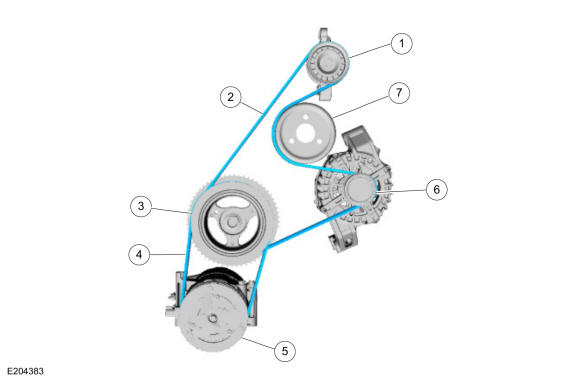

| Item |
Description |
| 1 |
Accessory drive belt tensioner |
| 2 |
Accessory drive belt |
| 3 |
Crankshaft belt pulley |
| 4 |
Belt - A/C compressor |
| 5 |
Pulley - A/C compressor |
| 6 |
Generator pulley |
| 7 |
Coolant pump pulley |
