Accessory Drive Belt: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the underbody shield.
    GFD266159Courtesy of FORD MOTOR COMPANY

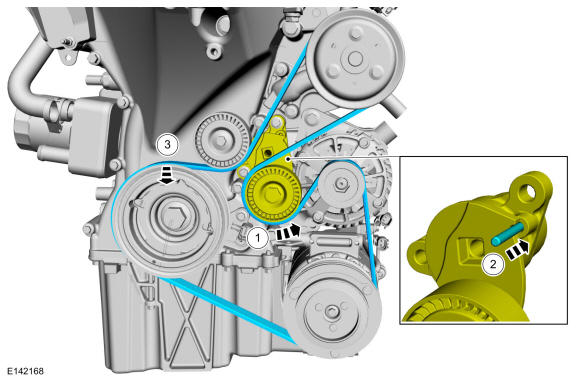

    1. Rotate the accessory drive belt tensioner counter clockwise.
    2. Install the drill bit. Use the General Equipment: 4 mm Drill Bit
    3. Remove the accessory drive belt.
GFD267151Courtesy of FORD MOTOR COMPANY
